Build Log: 4x4 on a ceiling hoist

Posted On May 15, 2016 By Nate

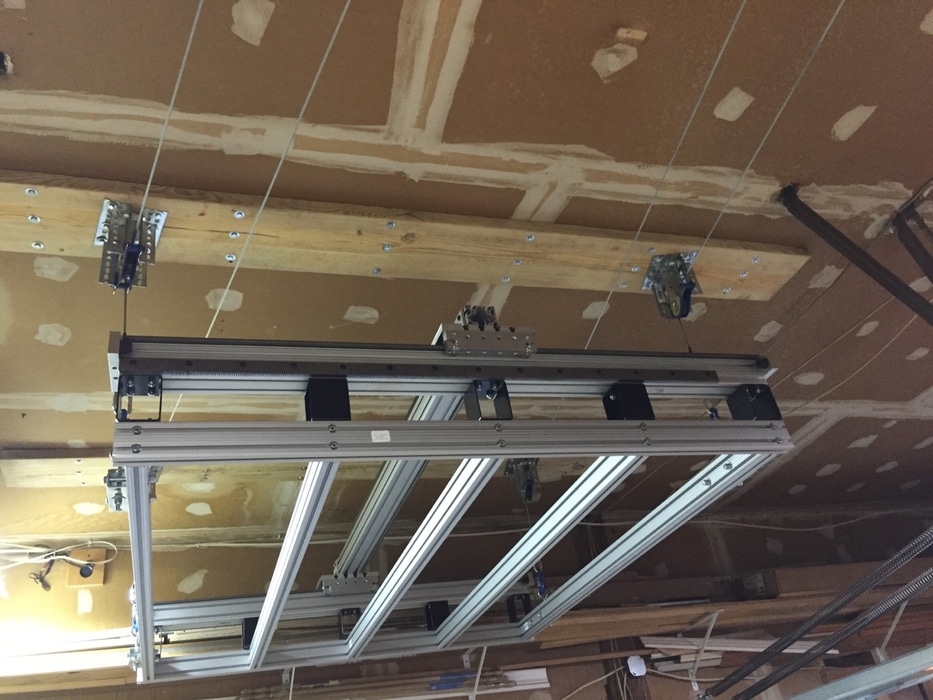

One of my customers Pat had an interesting problem. He had enough space for the 4x4 machine in his garage, but he also needs to fit his car in. To solve that problem he created a cable hoist that raises the machine above the garage door an out of the way.

Build Log: 4x4 on a ceiling hoist - Photo 1
Build Log: 4x4 on a ceiling hoist - Photo 2
Build Log: 4x4 on a ceiling hoist - Photo 3

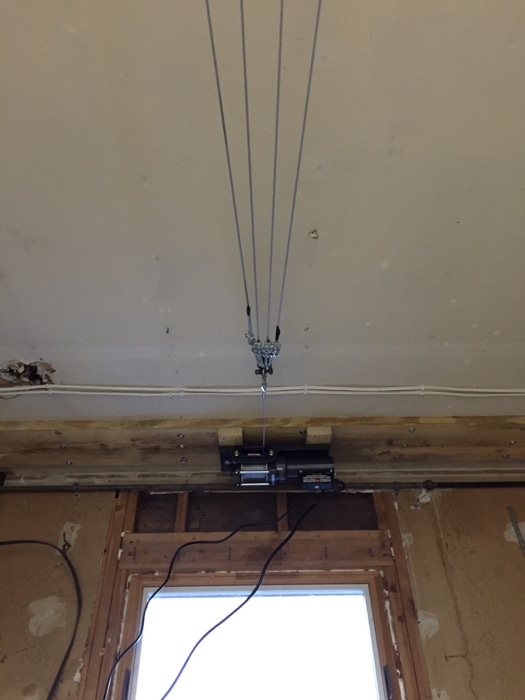

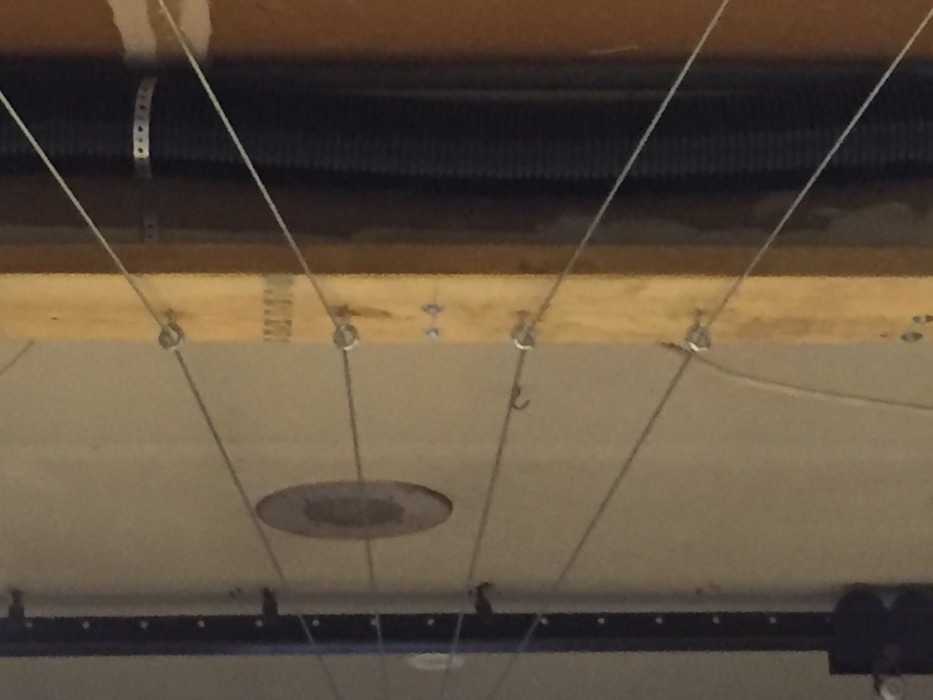

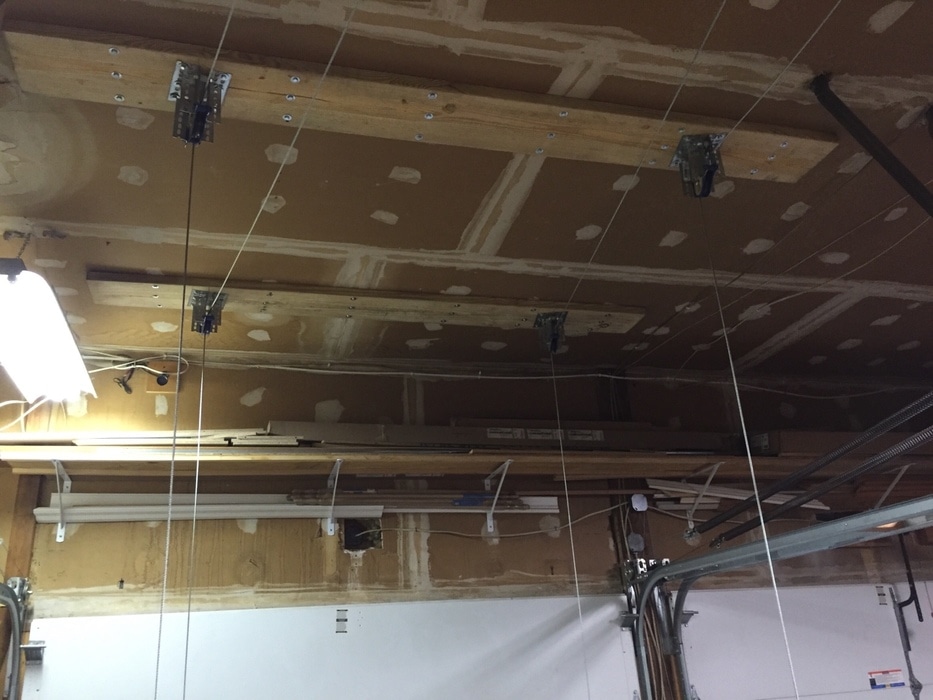

He uses a standard electric winch to accomplish the raising and lowering with ease. Here are some more shots of the cabling system. Standard cable with eye hooks and pulleys. Simple but effective.

Build Log: 4x4 on a ceiling hoist - Photo 4
Build Log: 4x4 on a ceiling hoist - Photo 5

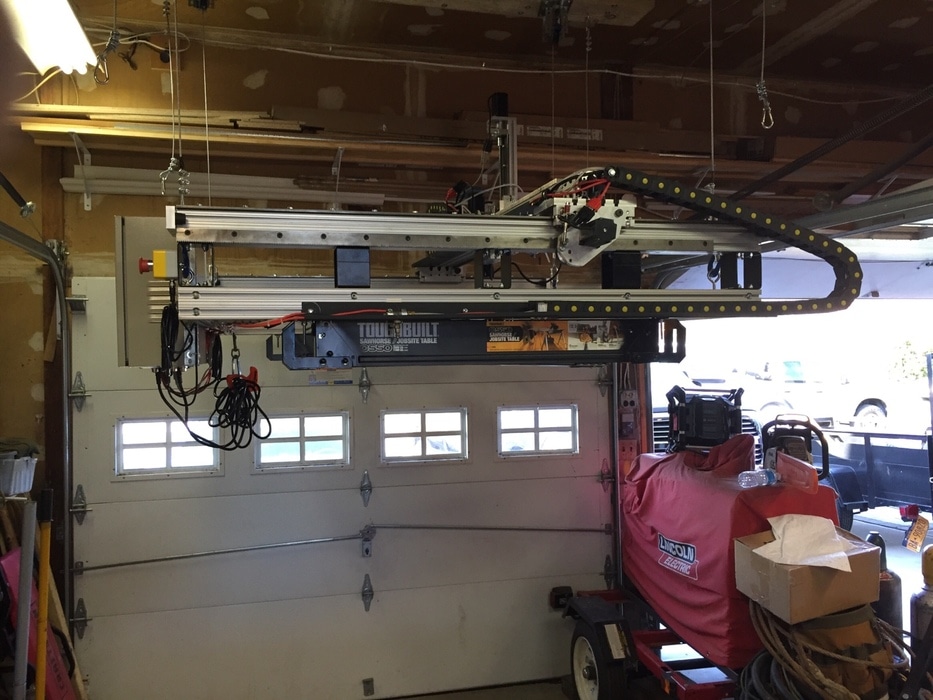

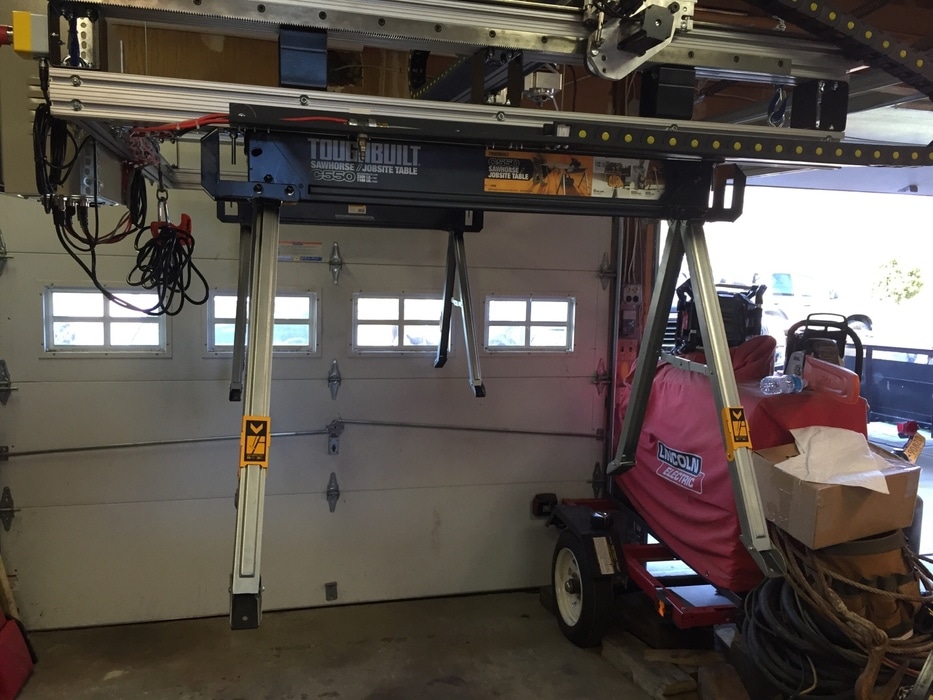

The machine still needed a stand so Pat decide to bolt a pair of heavy duty saw horses on the base of the machine. The legs fold up out of the way. I am curious to see if the stand will be sturdy enough to keep the machine from vibrating too much or walk across the floor. Note that if you want to do this, be very careful when running the machine until you know the stand will hold up.

Build Log: 4x4 on a ceiling hoist - Photo 6
Build Log: 4x4 on a ceiling hoist - Photo 7

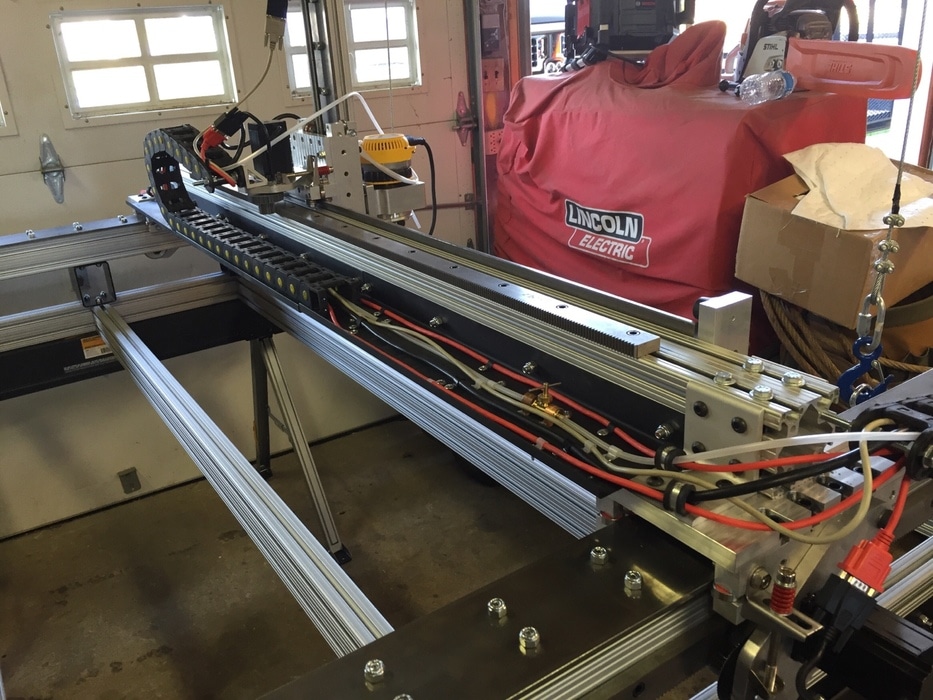

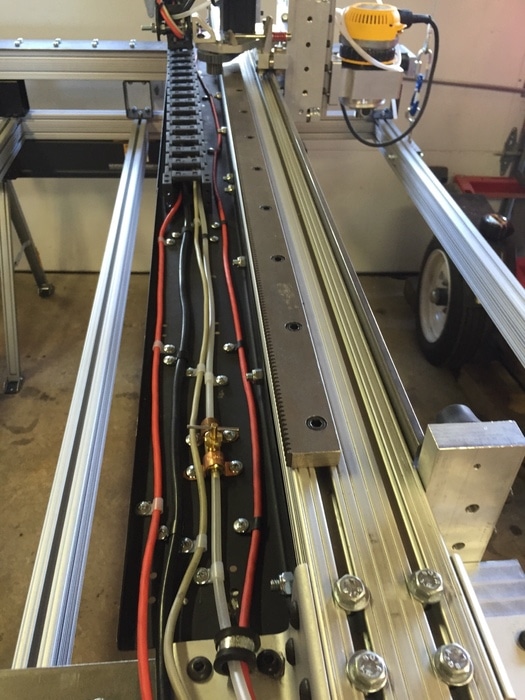

I also wanted to show some shots of the cable management system. He's got everything laid out nicely using our cable chain kit.

Build Log: 4x4 on a ceiling hoist - Photo 8
Build Log: 4x4 on a ceiling hoist - Photo 9
