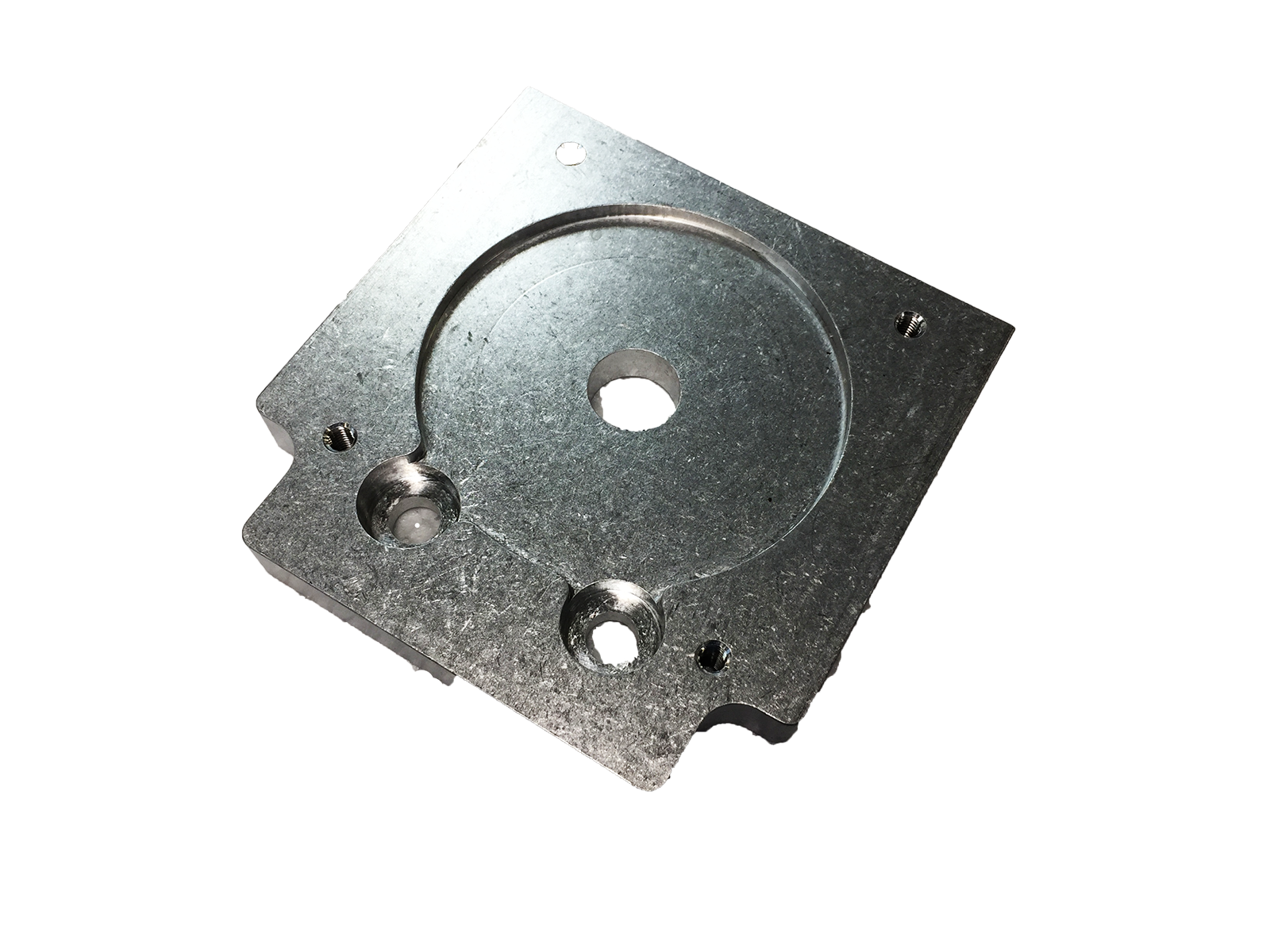

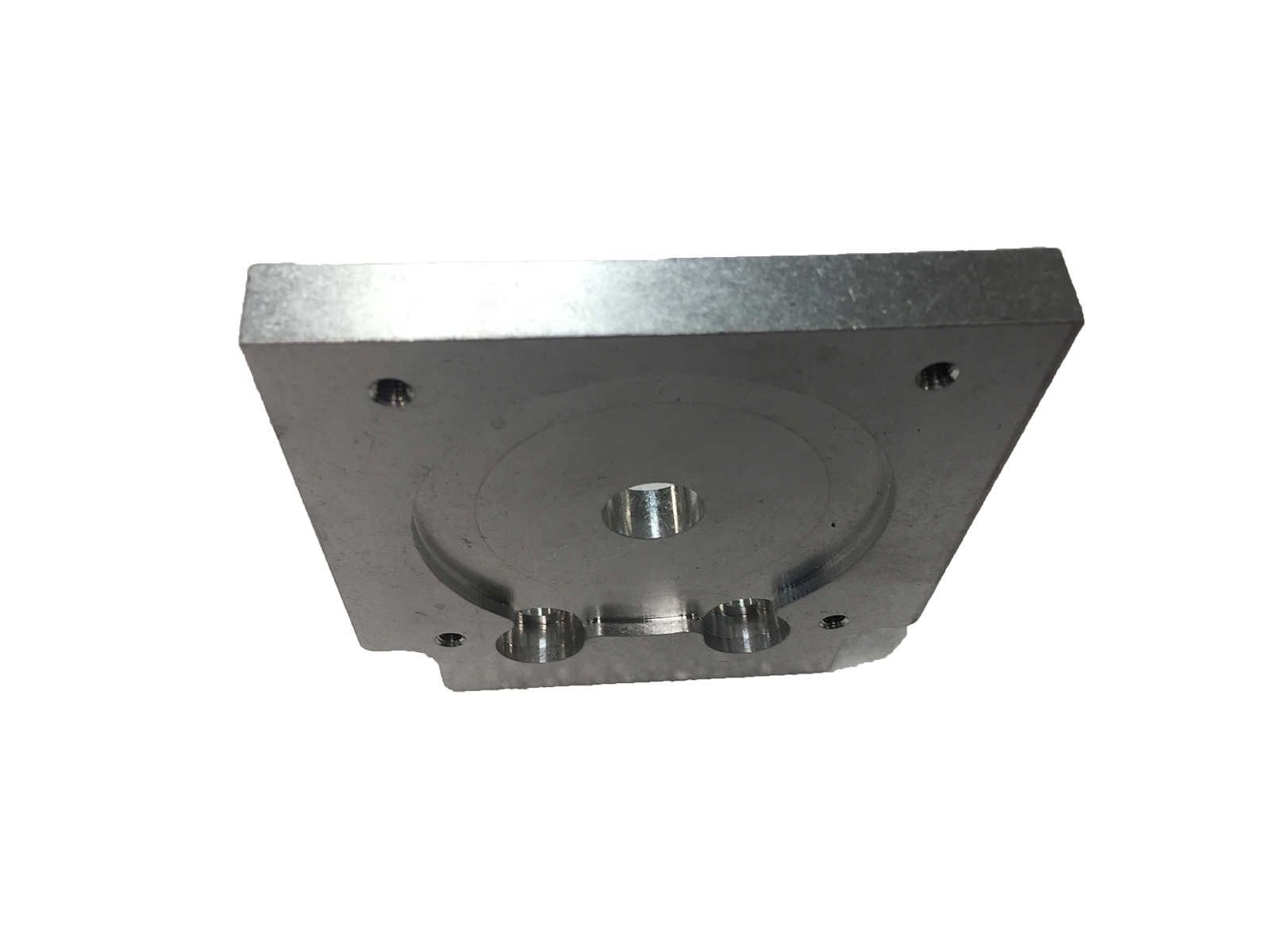

This motor mount is designed to accept any NEMA 34 motor. The mount is designed to work with the bearing blocks offered on this site. The aluminum construction offers a rigid mounting point for your motors that is aligned with the leadscrew shaft of the axis.
The mount attaches directly to the end of 1530 or 3030 extrusion from 8020. The end of the 8020 needs to be tapped to accept a screw. If you use the recommended fasteners, use a 5/16-18 tap.
Recommended Fasteners
- 2× 5/16-18 × 3/4” SHCS
- 4× 10/32-20 × 3/4” SHCS
Downloads
- CAD Files
