Rack and Pinion Drive

$125.00 – $155.00

Clear
SKU: 90500X Category: Rack And Pinion Drive Systems Tag: Rack and Pinion Drive
Browse
  • CNC Parts (34)
    • ACME Screw Drive Systems (11)
    • Cable Track Systems (0)
    • Linear Motion (3)
    • Plates And Risers (5)
    • Rack And Pinion Drive Systems (8)
    • Router And Spindle Mounts (8)
  • Discontinued (14)
    • CNC Parts (5)
    • Electronics (8)
    • Standard CNC Router Kits (1)
  • Electronics (13)
    • NEMA 23 Electronics (12)
    • NEMA 34 Electronics (7)
    • Spindles And VFDs (0)
  • Other Products (35)
    • Clearance/Scratch And Dent (7)
    • CNC Accessories (1)
    • Cutting Tools (14)
    • Fasteners And Brackets (4)
    • Spare Parts (10)
  • Saturn Series CNC Machines (27)
    • Saturn Accessories (24)
      • Cutting Tools (11)
      • Router And Spindle Mounts (7)
      • Software (6)
    • Saturn Routers (3)
  • Software (6)
  • Standard Series CNC Machines (6)
    • Machine Accessories (2)
    • Standard CNC Router Kits (4)
  • Description
  • Additional information
  • Reviews (0)

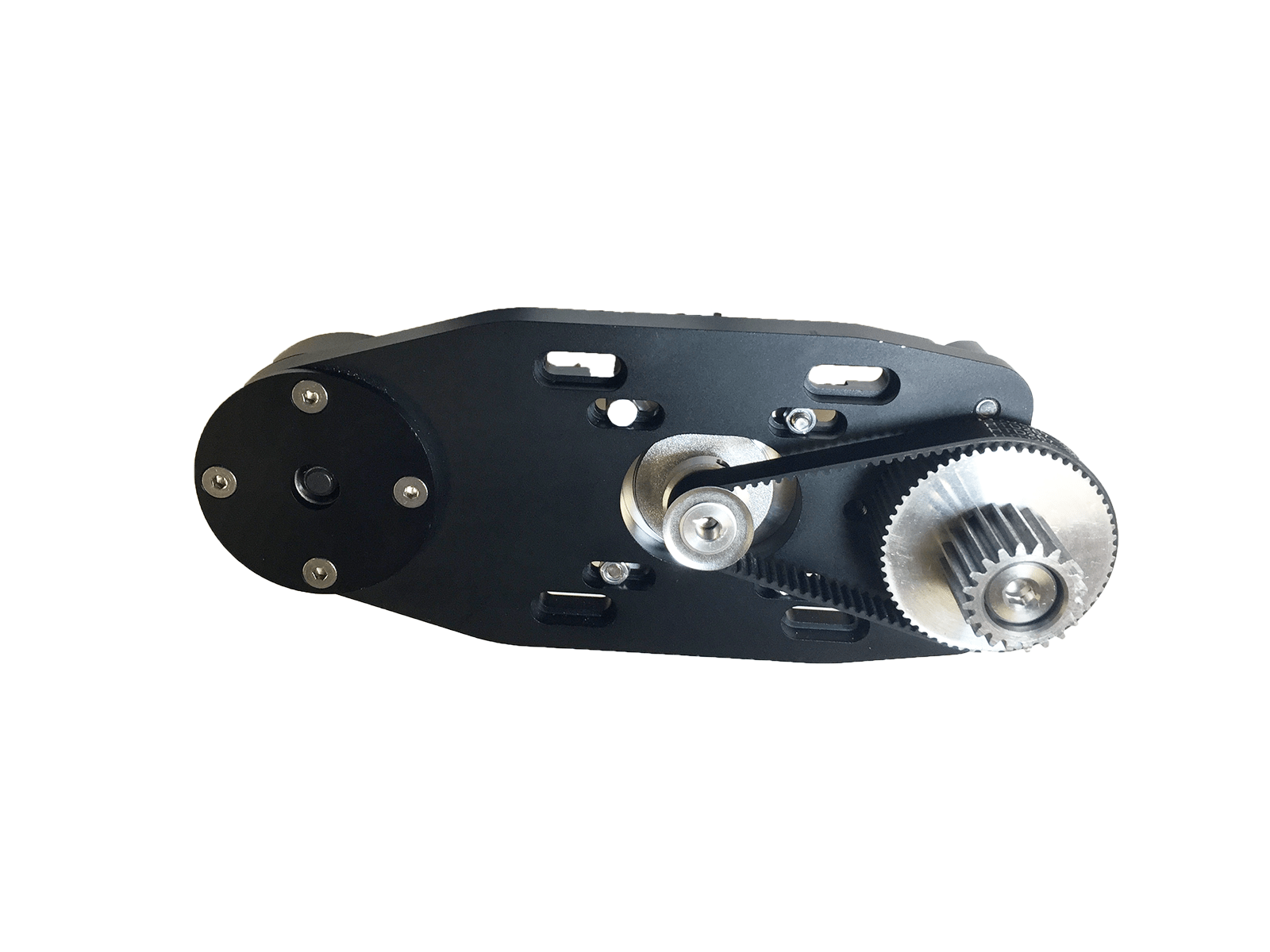

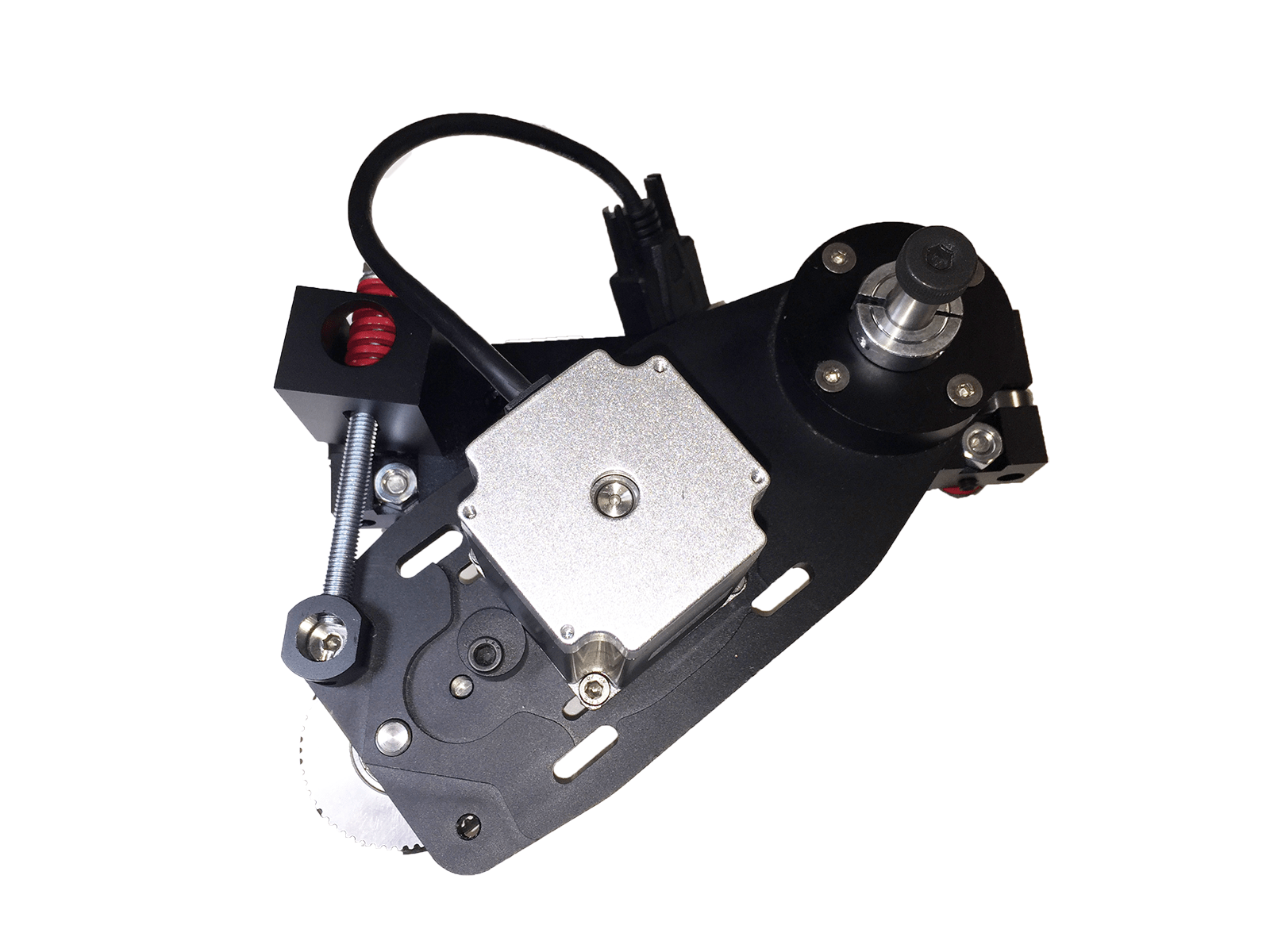

Our Rack and Pinion system is a cost-effective way to get the accuracy and performance you need in your CNC application. The system uses a tensioned spring to pull the pinion gear up into the rack teeth. With our system:
  • The pivot interface has 3 bearings instead of a bushing. These bearings plus a lockdown collar system eliminate plate wiggle and keep the pinion riding straight and true on the rack.
  • The universal mounting plate can accept either NEMA 23 or NEMA 34 motors. To convert between size you only need to change the pulley, belt, and drive spindle.
  • The pinion drive gear now uses a ball bearing on the timing gear portion where the belt attaches and a dry run sleeve bearing where the pinion rides on the gear rack. The gear rides on a precision ground stainless steel shaft for smooth motion.
  • A belt tensioning cam allows you to adjust the belt tension without disassembling anything.
  • A high resolution 3:1 belt drive reduction for both NEMA 23 and NEMA 34 motors.
  • Simple spring tension adjustment for gear pre-loading to rack.

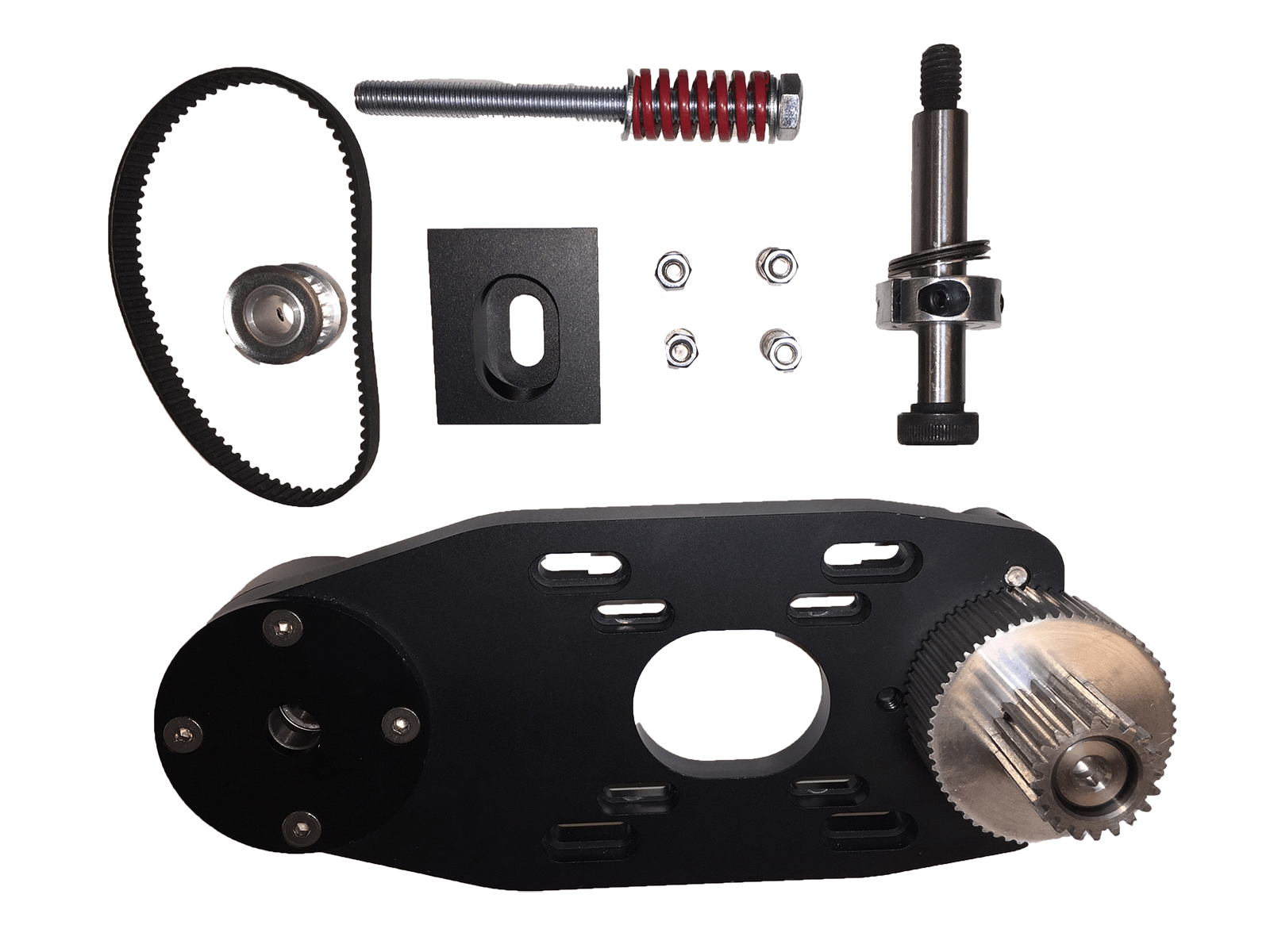

What’s in the package

NEMA 23
  • Universal Rack and Pinion drive plate for NEMA 23 or NEMA 34 motors.
    • The triple bearing pivot assembly with the collar lockdown system is pre-installed (Bolt has 3/8-16 mating thread).
    • Double bearing drive spindle. Features a 20 tooth pinion gear and 60 tooth timing pulley (3mm pitch). Comes pre-installed on the plate with a precision ground stainless steel shaft.
    • The belt tensioning cam is pre-installed on the plate.
  • 20 tooth timing pulley for motors with 1/4” or 3/8” bore to match your motors shaft size.
  • 3mm pitch timing belt.
  • Motor mounting screws and nuts (motor not included).
  • Spring pre-load assembly. Includes 2 mounting brackets, spring with tensioning bolt.
NEMA 34
  • Universal Rack and Pinion drive plate for NEMA 23 or NEMA 34 motors.
    • The triple bearing pivot assembly with the collar lockdown system is pre-installed (Bolt has 3/8-16 mating thread).
    • Double bearing drive spindle. Features a 20 tooth pinion gear and 64 tooth timing pulley (5mm pitch). Comes pre-installed on the plate with a precision ground stainless steel shaft.
    • The belt tensioning cam is pre-installed on the plate.
  • 20 tooth timing pulley for motors with 1/2” bore.
  • 5mm pitch timing belt.
  • Motor mounting screws and nuts (motor not included).
  • Spring pre-load assembly. Includes 2 mounting brackets, spring with tensioning bolt.

Product Notes

  • The motor is not included. Use at least a 380 oz-in NEMA 23 motor or 500 oz-in NEMA 34 Motor for better machine performance.
  • The drives mate with our drilled and counterbored gear rack which is available in several sizes. These gear racks are 3/4in thick by 1.25in wide (2.5 times the size of normal gear racks!) and feature drilled mating holes every 4 inches. This configuration gives you much greater stiffness, which leads to longer gear life.
  • This drive is the same drive we use in our Saturn 3 machines. The mounting hole pattern is (2) 3/8-16 tapped holes spaced 6in apart. If you need these to fit onto your machine, give us a call and we can work with you to make sure they are the perfect fit.

CAD files

  • coming soon
Weight 5 lbs
Dimensions 10 × 5 × 5 in
