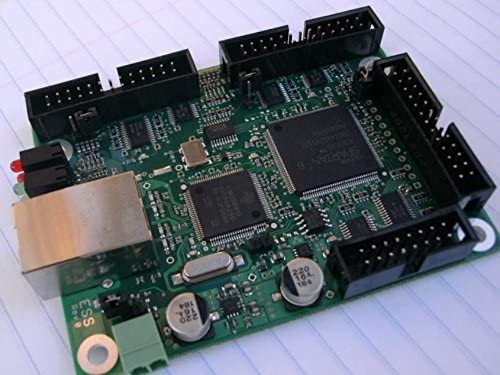

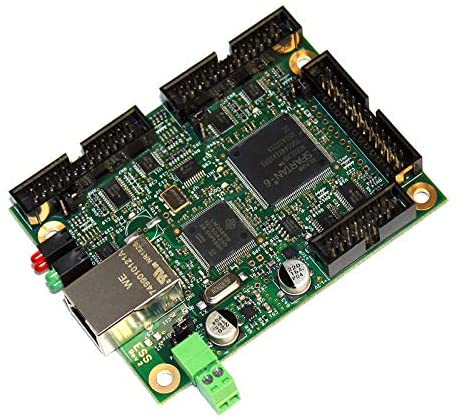

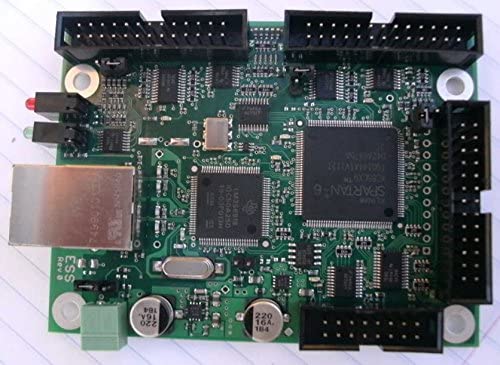

Ethernet Smoothstepper
$180.00
In stock
Since the SmoothStepper outputs 5V signals (with currents limited to 24 or 32 mA, dependent on the selected output pin), you will need a motor driver between the SmoothStepper and the motor itself. For your axes (X, Y, Z, A, B, and C), the SmoothSteppers can control stepper motor drivers and digital servo motor drivers. The board does not support analog servo motor drivers or PWM servo motor drivers.
| CNC Motion Controller | ESS (Ethernet SmoothStepper) |
| PC Interface | Ethernet |
| Documentation | ESS Manual |
| Mach4 Plugin | Download |
| Mach3 Plugin | Download |
| I/O |
|
| Current Drive Output |
All pins are rated for 0V to 5V.
The following output pins have a drive (sink) of +(-) 32mA:
The following output pins have a drive (sink) of +(-) 24mA:
|
| Pulse Output Capabilities | Up to 4 MHz, Step and Direction, Quadrature, CW/CCW |
| Motor Control Capability * |
Up to 6 Motors (Step and Direction, Quadrature, or CW/CCW)
Plus a Spindle (Relay, PWM, Step and Direction, Quadrature, or CW/CCW). |
| Encoders/MPG | > 4 MHz capture rate
Mach3: Up to 5 total Mach4: 7 Encoders, 3 MPGs |
| Configurable Noise Filtering per Class of Input | Mach3 Input Classes: Limits, home, probe, E-Stop, Jog, Encoders/MPGs
Mach4: Each input individually configurable |
| Features |
|
| Power Source | External 5V Power Supply Required |
| Electrical Isolation | Full Electrical and Noise isolation for your PC** |
| PC Configuration Utility | The System Configuration Utility is provided to configure your PC for use with the ESS in as few as 3 mouse clicks. |
| Windows Drivers | No Drivers for the ESS.
(Your computer should already have drivers installed for your Ethernet Card.) |
| *SmoothStepper Motor signal outputs are only 5V and 24 mA or 32 mA. This will not drive a Stepper Motor directly, and you will need a Motor Driver for each stepper motor.
Digital Servo Motors typically have a motor driver built into their controller. For a Spindle that is controlled by a 0V to 10V Analog signal, you will need a Break Out Board that can convert a PWM, Step/Dir, CW/CCW or Quadrature signals into a 0V to 10V analog signal (and also provide one or two relays to control the VFD). |
||||
| ** With the use of a 5V power supply that is isolated from your PC. |
| Weight | 2 lbs |
|---|---|
| Dimensions | 4 × 4 × 1 in |
