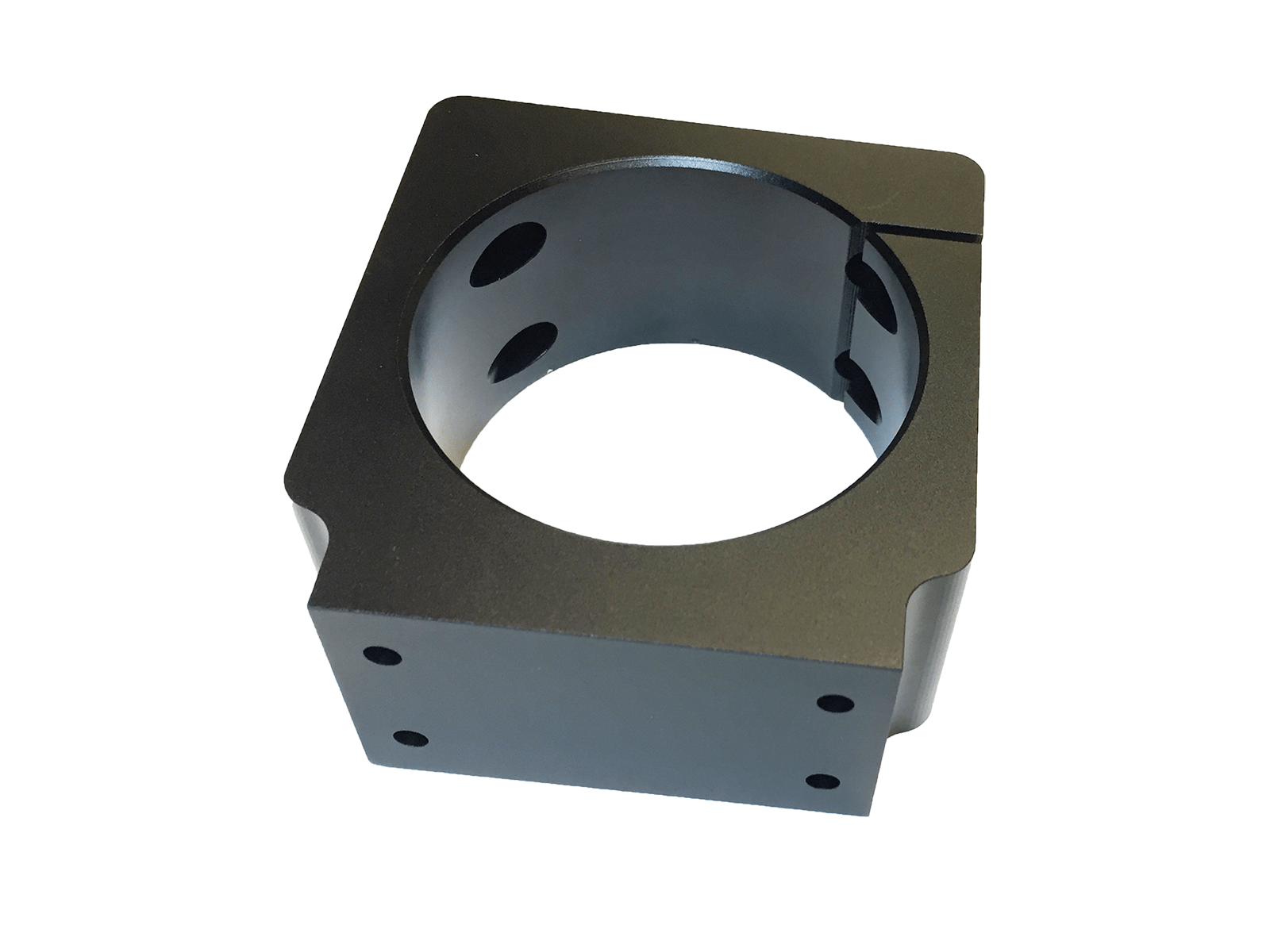

80mm Spindle Mount

This spindle mount will hold any air and water cooled spindle with a 80mm body diameter.

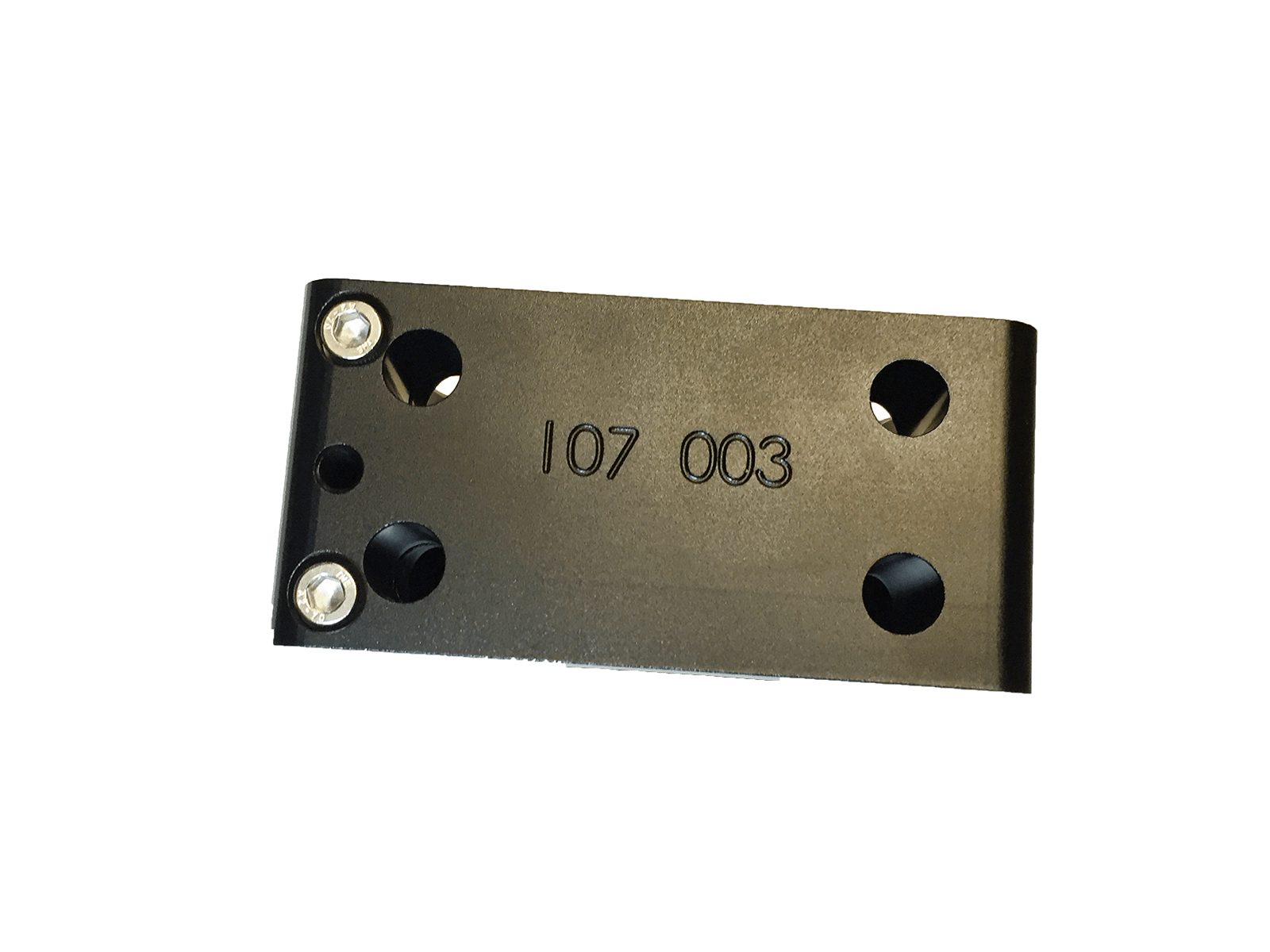

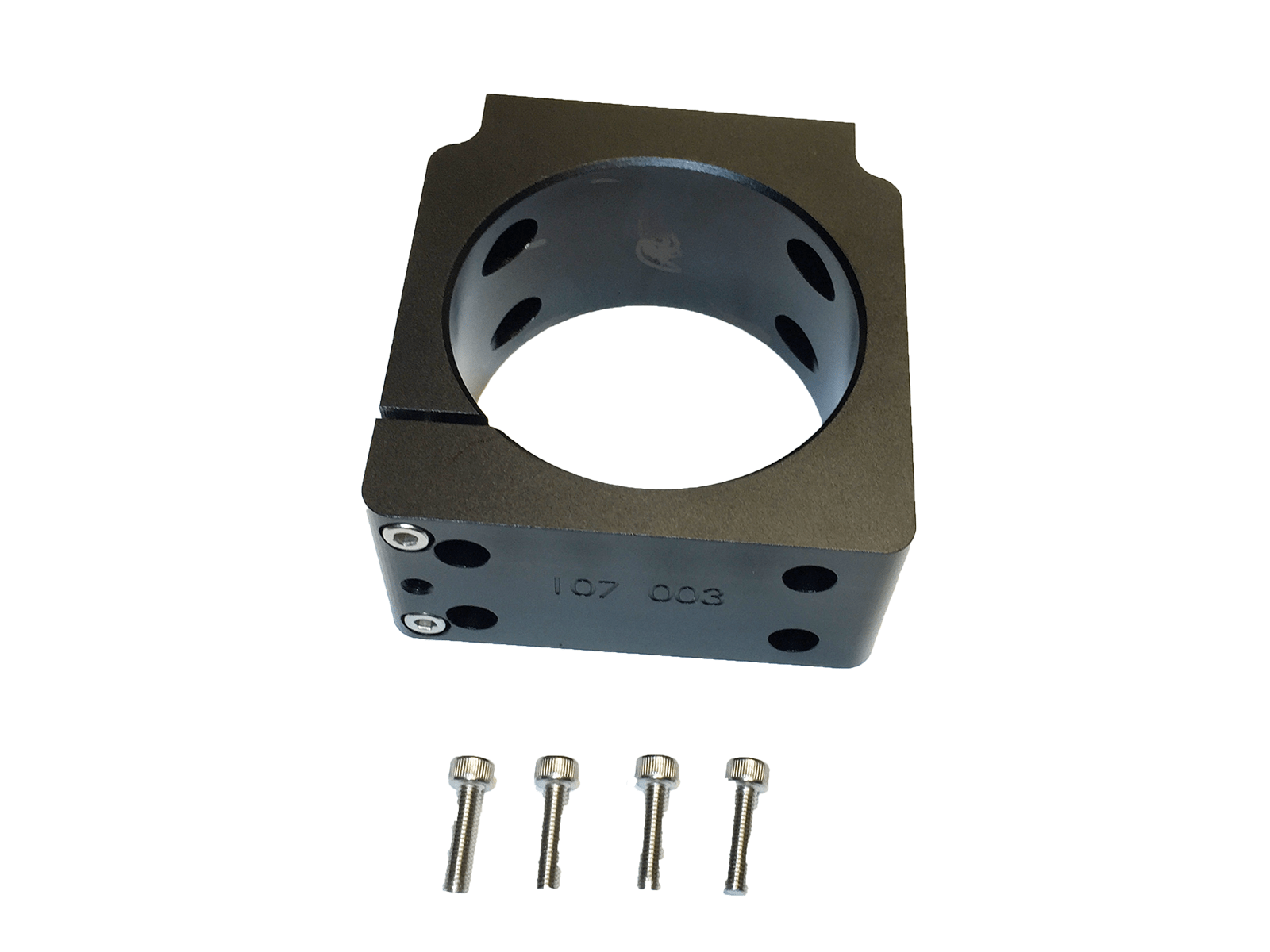

Made from a single block of billet aluminum to increase the strength and rigidity of the mount. The mount will attach to both our Saturn Series and standard series kits, as well as other CNC machines with a standard 1in x 2.25in bolt pattern. The spindle comes with 4 M5 mounting screws. We can substitute #10-32 mounting screws on request.

If you are mounting directly to 8020, you will also need to purchase a base adapter plate.

Downloads

• PDF Drawing

Installation
